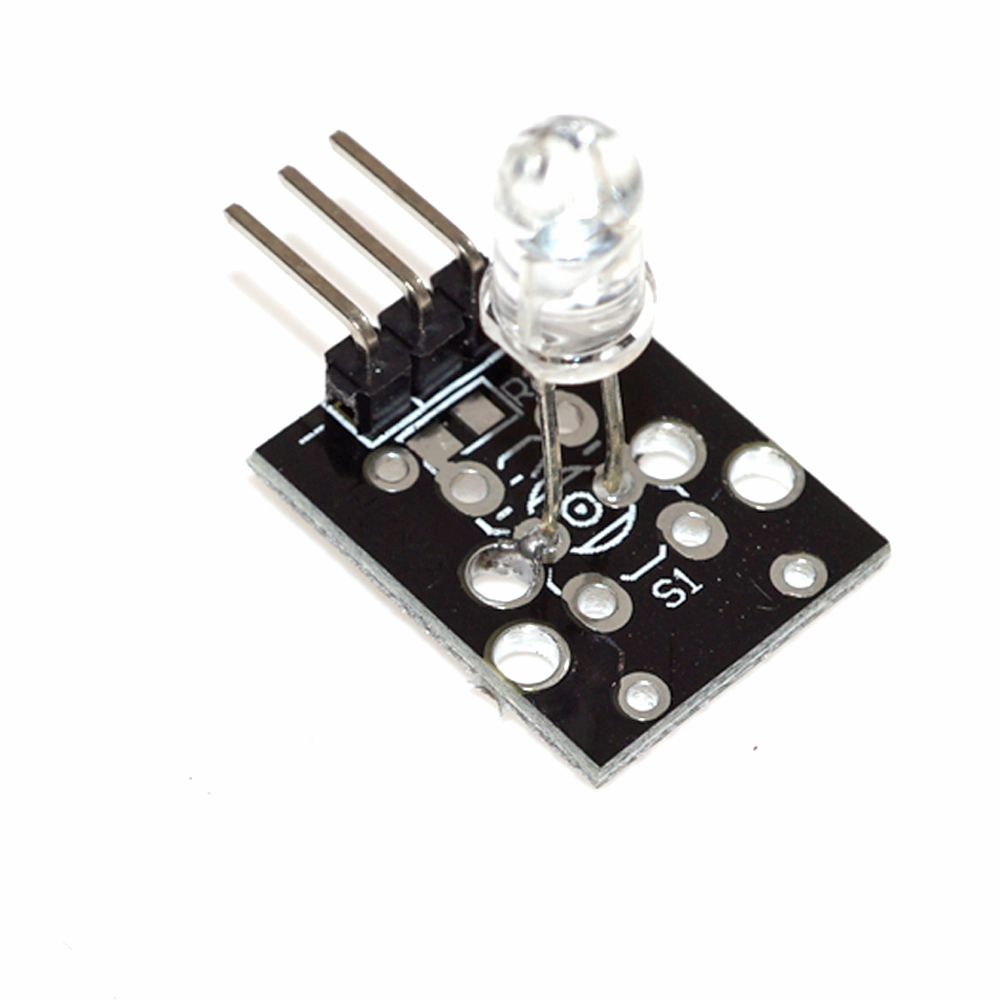

Module LED Infrared Light Transmitter

Description

LED Infrared Light Transmitter Module

1. Weight:3g 2. Pack Size5cm x 4cm x 3cm 3. Pulse Forward Current 0.3 ~ 1 A 4. Positive To the current 0.3 ~ 1 A 5. Power dissipation: 90 mW 6. Operating voltage: 5V 7. Output form: digital output 8. There are 2 fixing holes for easy installation. Aperture 3.1mm 9. With data indicator 10.PCB size: 23.5 * 21.5mm 11. Signal type: digital signal 12.Working environment: -25 ~ + 85 ° 13.Storage temperature: -30 ~ + 100 ° 14.Infrared center wavelength: about 850nm-940nm 15.Infrared emission angle: about 20 degrees 16.Infrared emission distance: about 1.3 meters (5V 38Khz)
