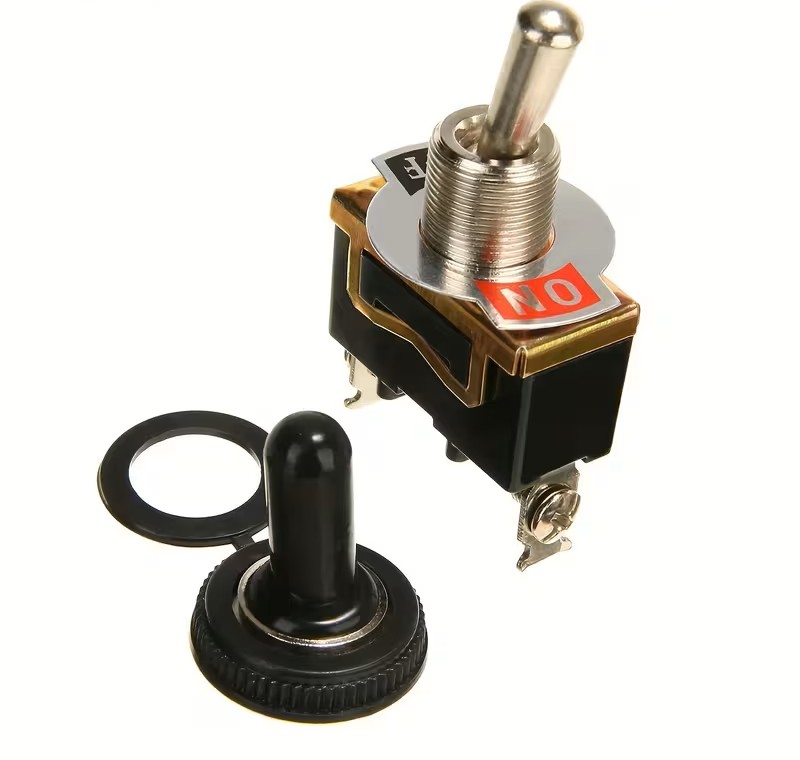

KN3C-101 15A 250V Heavy-Duty Toggle Switch (12mm Panel Mount)
R43,95
12 in stock
Description
Heavy-duty KN3C-101 2-pin SPST toggle switch rated at 15A 250V AC / 20A 125V AC. Features a rugged metal lever, durable bakelite body, and standard M12 panel mount design. Built for reliable ON/OFF power control in high-current applications like automotive modifications, marine vessels, industrial equipment, and heavy DIY power boxes.
Key Features
-
High-Current Capacity: Engineered to handle up to 15A at 250VAC (20A at 125VAC) for heavy electrical loads.
-
Rugged Heavy-Duty Build: Solid metal toggle lever with a heat-resistant body designed for tough environments.
-
Easy M12 Panel Mounting: Standard threaded collar with included hex nuts and lock washer fits cleanly into 12mm panel cutouts.
Technical Specifications & Dimensions
| Feature / Spec | Measurement / Detail |
| Model | KN3C-101 (or KN3C-101A / KN3C-101AA) |
| Contact Configuration | SPST (Single Pole Single Throw — 2 Pin) |
| Switch Action | 2-Position Latching (ON – OFF) |
| Current / Voltage Rating | 15A 250V AC / 20A 125V AC |
| Panel Cutout Diameter | 12.0 mm – 12.2 mm (M12 Thread) |
| Terminal Type | Screw Terminals or 6.3mm Spade/Tab Terminals |
| Mechanical Life | 50,000+ Cycles |
Headings for Your Website
1. Main Product Title (H1 Heading)
KN3C-101 Heavy-Duty Toggle Switch – 2-Pin SPST ON/OFF (15A 250VAC)
2. SEO / Descriptive Alternative
KN3C-101 12mm Panel Mount Heavy-Duty Toggle Switch (15A 250V / 20A 125V)
Reviews
There are no reviews yet.
