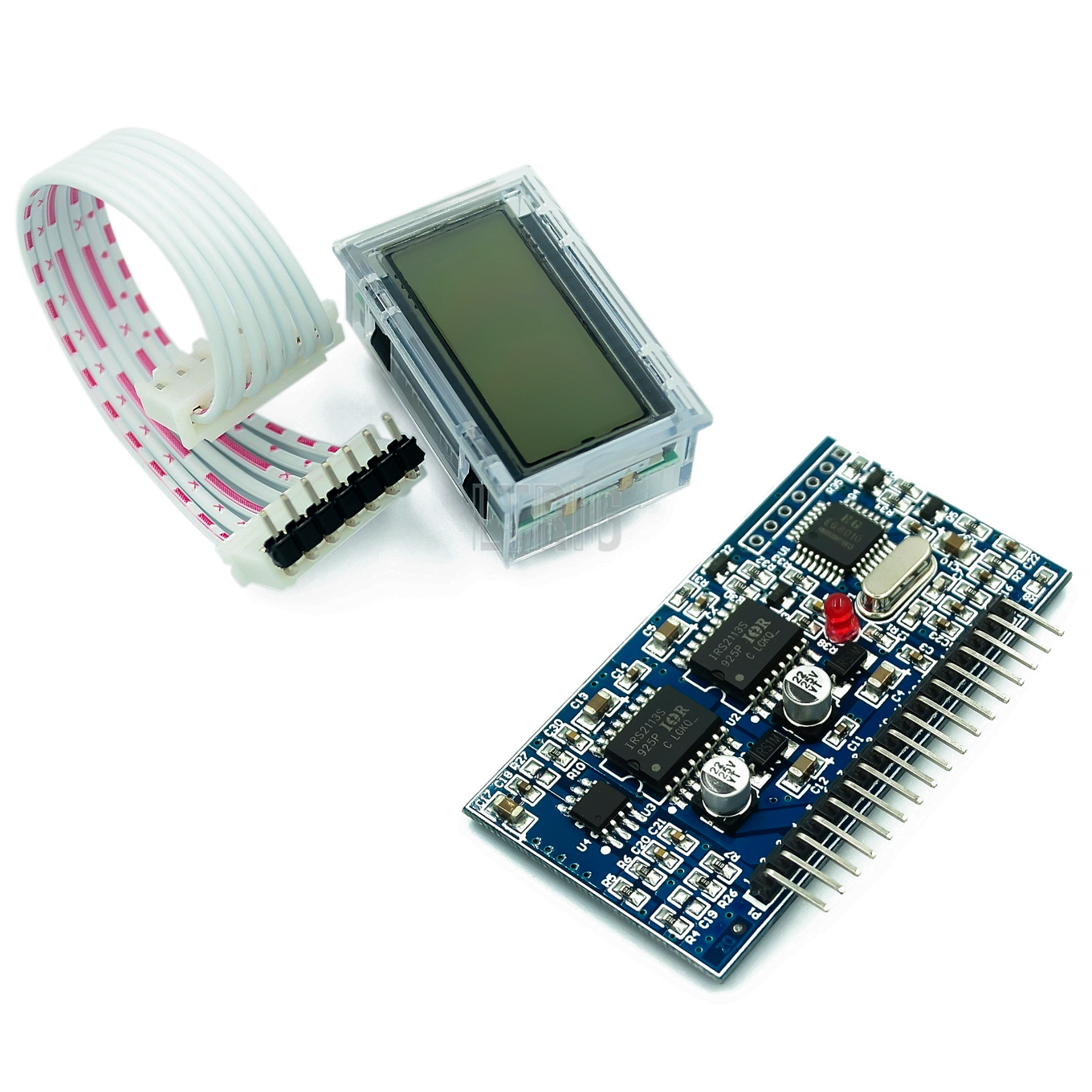

Inverter Driver Module Board 5V Pure Sine Wave EGS002 EG8010+LCD Display

Here is a short description of the EGS002 EG8010 Pure Sine Wave Inverter Driver Board (with LCD Display):

• What it is: A complete, high-precision driver board designed to serve as the core control unit for building pure sine wave power inverters.

• Key Specs & Chipset:

  • Powered by the EG8010 ASIC sine wave generator and IR2110 MOSFET/IGBT gate driver chips.

  • Input Voltage: 5V DC logic supply.

  • Output Signal: Dual-channel SPWM driver outputs (supports 50Hz or 60Hz pure sine wave generation).

• Key Features:

  • Dedicated LCD Display: Includes a plug-in monochrome LCD screen that displays real-time voltage, current, frequency, and temperature data.

  • Built-in Protections: Integrates over-voltage, under-voltage, over-current, and over-temperature detection/shutdown mechanisms.

  • Adjustable Dead Time: Hardware jumpers allow setting SPWM dead time ($300\text{ns}$, $500\text{ns}$, $1.0\mu \text{s}$, or $1.5\mu \text{s}$) to protect power MOSFETs from shoot-through.

• Common Uses: Core controller module for DIY solar inverters, UPS backup power supplies, variable frequency drives, and $12\text{V}/24\text{V}/48\text{V}$ DC to $110\text{V}/220\text{V}$ AC power conversion projects.
