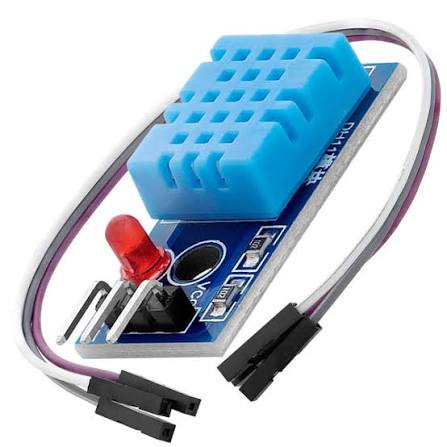

DHT11 Digital Temp & Humidity Sensor Kit – With Jumper Cables Included
R45,95
DHT11 Digital Temp & Humidity Sensor Kit – With Jumper Cables Included suitable for DIY electronics, robotics, automation and prototyping projects.
20 in stock
Description
Product Overview
The DHT11 is the essential entry-level sensor for any DIY electronics project. Compact, affordable, and easy to integrate, this module provides accurate, real-time temperature and humidity readings for your Arduino, Raspberry Pi, or ESP8266 projects. Whether you are building a smart home climate monitor, an automated greenhouse, or a simple weather station, the DHT11 delivers reliable data right out of the box.
Key Highlights
- Ready-to-Use: Includes premium jumper cables for instant connectivity.
- Beginner Friendly: Perfectly supported by standard libraries for Arduino and Raspberry Pi.
- Reliable Data: Calibrated digital signal output for consistent measurements.
- Wide Compatibility: Works seamlessly with 3.3V and 5V microcontroller logic levels.
Technical Specifications
| Feature | Specification |
| Operating Voltage | 3.3V to 5.5V DC |
| Current (Measuring) | 0.5mA to 2.5mA |
| Current (Standby) | 100uA to 150uA |
| Temperature Range | 0°C to 50°C |
| Temperature Accuracy | ±2.0°C |
| Humidity Range | 20% to 90% RH |
| Humidity Accuracy | ±5% RH |
| Sampling Rate | 1 Hz (One reading every second) |
| Output Type | Digital Signal (Single-bus) |
| Dimensions | 15.5mm x 12mm x 5.5mm |
Pinout Configuration
Since you are selling it with cables, it’s helpful to list the pins so your customers don’t accidentally fry the sensor:
- VCC: Power (3.3V – 5V)
- DATA: Digital Signal Output
- NC: Not Connected (Usually left empty)
- GND: Ground
Additional information
| Weight | 15 g |
|---|
