12V Electric Piezo Tone Buzzer
R19,95
12V Electric Piezo Tone Buzzer suitable for DIY electronics, robotics, automation and prototyping projects.
100 in stock
Description
| 1 | Rated voltage | 12VDC |
| 2 | Operating voltage | 6-15 VDC |
| 3 | Rated current (mA) | Max.20mA, at 12VDC |
| 4 | Output sound pressure (dB)10cm | Min.95dB, at 12VDC |
| 5 | Resonant whisker rate (Hz) | 3500±500 Hz |
| 6 | The tones | Continuous |
| 7 | Operating temperature () | -20 – +70° C |
| 8 | Storage temperature (° C) | -30 -+80° C |
| 9 | Environmental protection | Yes |
| 10 | Net weight (g) | Approx 3g |

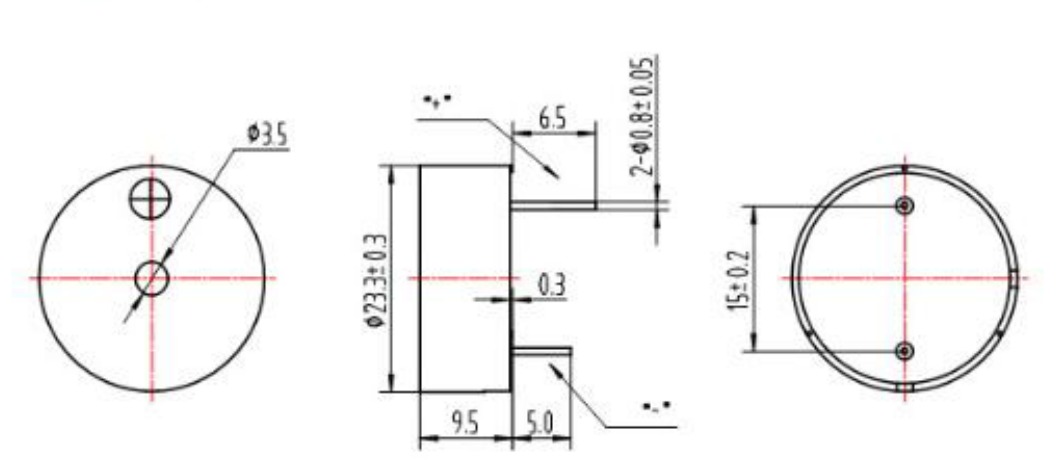

Unit of size drawing: mm
Basic tolerance: Unless otherwise indicated, the general tolerance is 0.5mm
Shell material: black PPO
Additional information
| Weight | 20 g |
|---|
