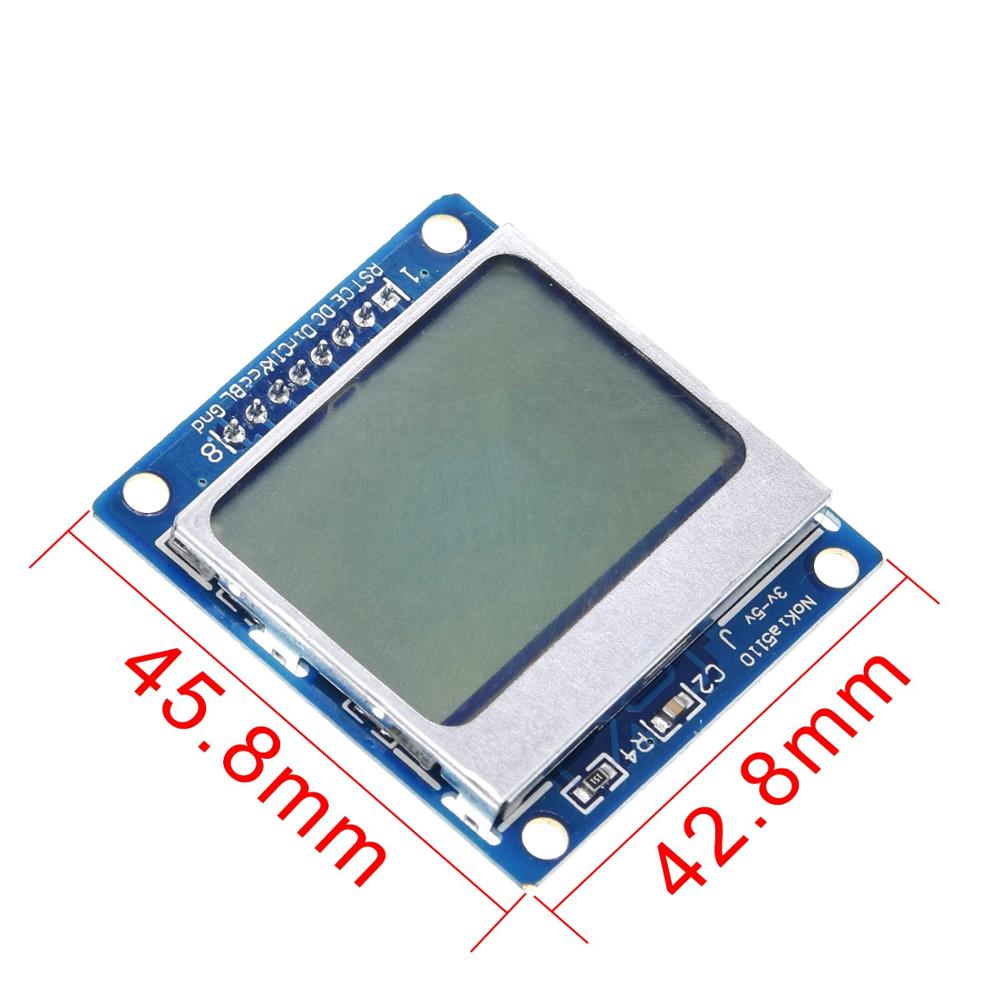

Nokia 5110 LCD Display Blue Backlight

Controller Philp PCD8544 LCD controller
Power supply voltage: 2.7V- 3.3V
Backlight Power Supply Voltage: 3.3V MAX
Can be driven by Arduino/STM32/8051/AVR/PIC and other low power controllers
Compatible with Nokia 3310 LCD driving source code

Pin Connections:

1. RST——— reset.
2. CE————chip selection.
3. DC———–data/commands choice.
4. DIN———–serial data line.
5. CLK————serial Clock Speed.
6. VCC———-Power, 3.3V (Positive).
7. LIGHT——— backlight control terminal.
8. GND———–power negative.
