Description

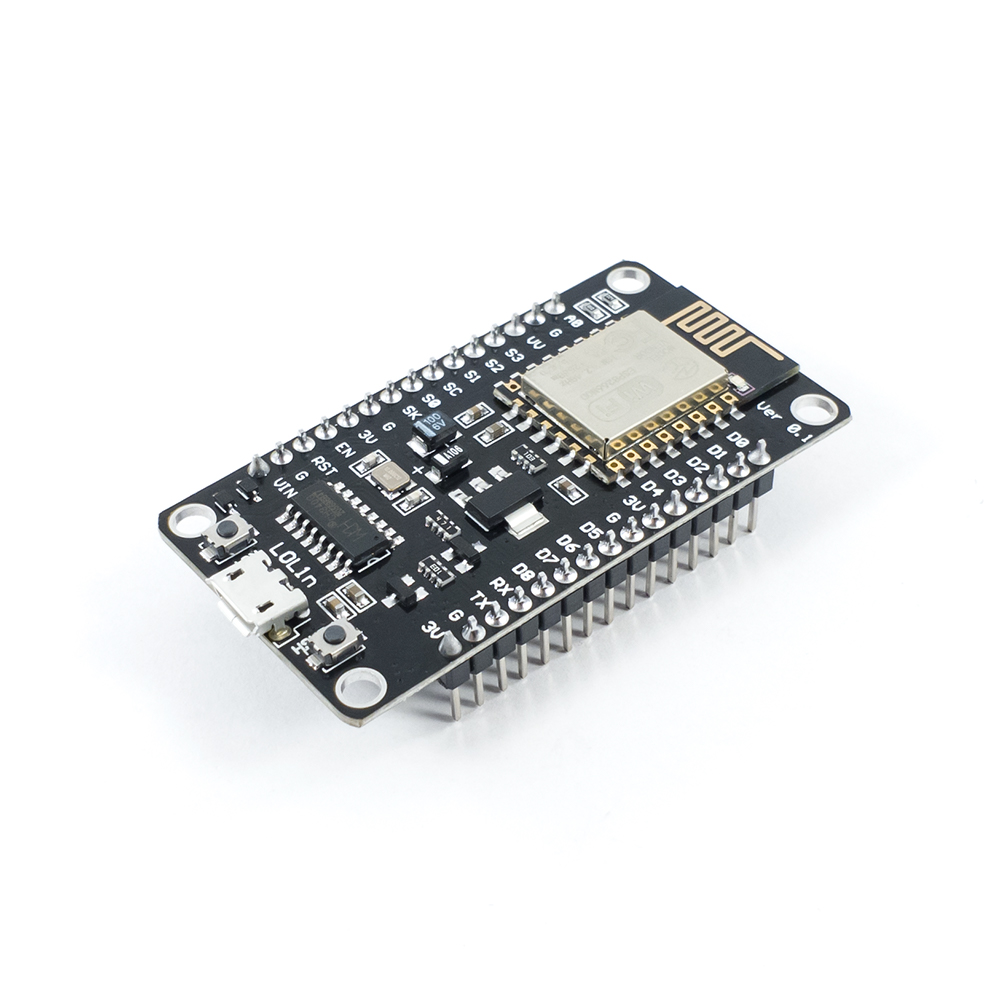

- ESP8266MOD or ESP-12E or ESP-12F is New LoLin Node MCU Lua V3 Wireless Module Wifi Internet of Things (IoT) Development Board Based On ESP8266 Micro USB To TTLThis is the famous Node MCU which is based on ESP8266 Wi-Fi SOC. This is version 3 and it is based on ESP-12E or ESP-12F or ESP8266MOD
- Wireless 802.11 b / g / n standard
- Support STA / AP / STA + AP three operating modes
- Built-in TCP / IP protocol stack to support multiple TCP Client connections (5 MAX)
- D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
- AD0: 1 channel ADC
- Power input: 4.5V ~ 9V (10VMAX), USB-powered
- Current: continuous transmission: ≈70mA (200mA MAX), Standby: <200uA
- Transfer rate: 110-460800bps
- Support UART / GPIO data communication interface
- Remote firmware upgrade (OTA)
- Support Smart Link Smart Networking
